How to setup and use your HP DSA awarded printer.

1. Printer Setup Video Guides

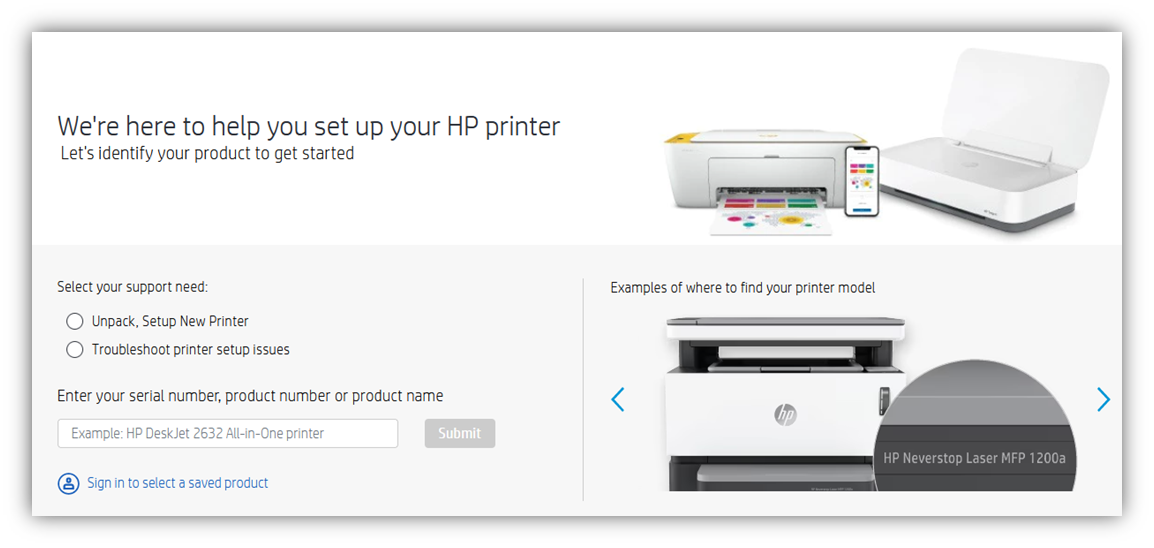

Go to the below webpage, then click the unpack, Setup New Printer and enter your Product Name.

https://support.hp.com/gb-en/printer-setup

Here you will find video to guide you through the setup process.

2. Remove the printer from the box

Remove the printer from the box, and then remove all tape, stickers, and packing materials.



Remove the printer from the box.

Remove all tape and packing materials from the outside of the printer

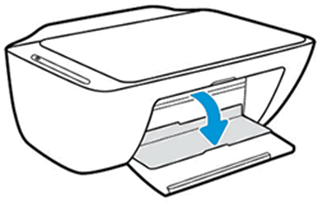

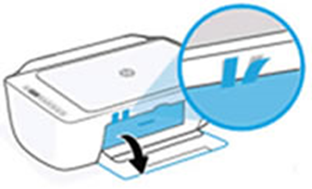

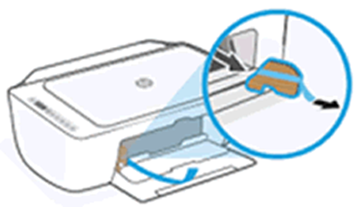

Lower the output tray, and then remove the tape from the cartridge access door.

Remove the printer from the box.

Remove all tape and packing materials from the outside of the printer

Lower the output tray, and then remove the tape from the cartridge access door.

3. Connect the power cord

Plug the printer into an electrical outlet, and then turn on the printer.

Do not connect a USB cable at this time. The connection to the computer is established during the software installation.

A. Connect the power cord to the back of the printer and into an electrical outlet.

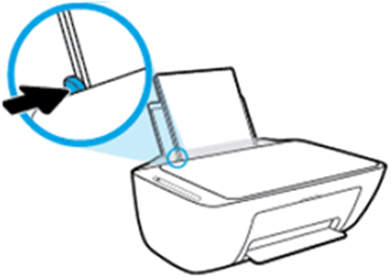

B. Press the Power  button.

C. Wait until the printer is idle and silent.

4. Load plain paper into the input tray.

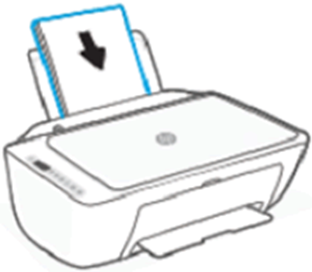

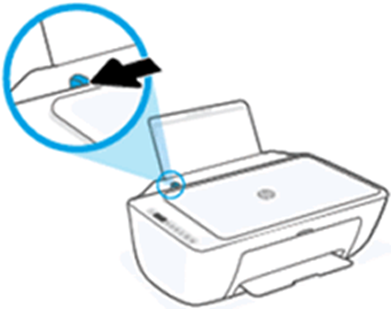

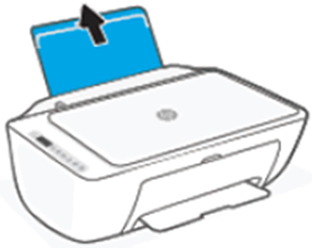

Raise the input tray.Slide the paper width guide all the way to the left.Load a stack of plain white paper into the input tray.

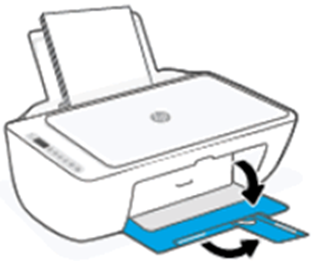

Slide the paper width guide to the right until it rests at the edge of the paper.Lower the output tray, and then pull out the tray extender.

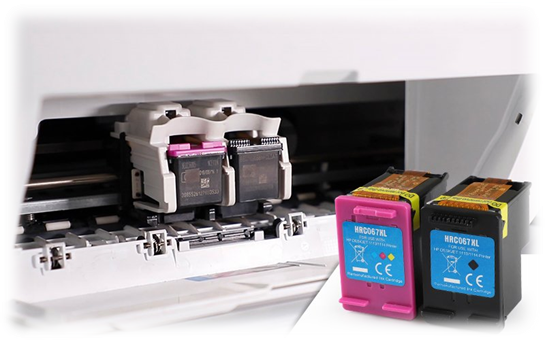

5. Install the ink cartridges and complete setup

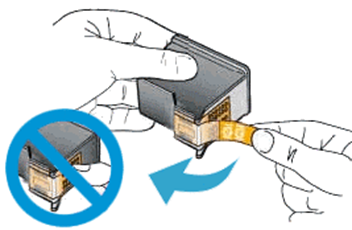

  With the output tray down, open the ink cartridge access door.Remove the ink cartridge from its packaging, Hold the cartridge by its sides, and then remove the

protective tape.

CAUTION: Do not touch the copper-coloured contacts or the ink nozzles, or reapply the protective tape. Touching these areas can result in an ink system failure.

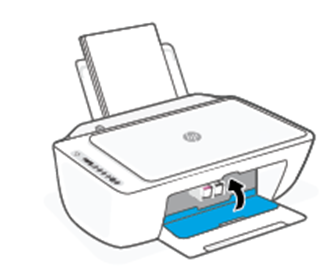

 Slide the cartridge into its corresponding colour-coded slot, and then push up until it snaps into place.Close the ink cartridge access door.

6. Add the printer to HP Smart

 The HP Smart app is required and helps connect your device to your printer. It also guides you through the rest of the setup process.

 Go to your App store on your device i.e. (Microsoft Store, App Store) and download the HP smart app.

 Open the app, and then touch Add a New printer or touch the plus sign + to find your printer.

 Follow the prompts in HP Smart to connect the printer to your network and device.
